A source for video that provides a sequence of frames. More...

#include <wpi/cs/VideoSource.hpp>

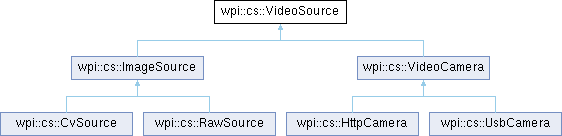

Inheritance diagram for wpi::cs::VideoSource:

Public Types
enum	Kind { kUnknown = CS_SOURCE_UNKNOWN , kUsb = CS_SOURCE_USB , kHttp = CS_SOURCE_HTTP , kCv = CS_SOURCE_CV , kRaw = CS_SOURCE_RAW }
	Video source kind. More...
enum	ConnectionStrategy { kConnectionAutoManage = CS_CONNECTION_AUTO_MANAGE , kConnectionKeepOpen = CS_CONNECTION_KEEP_OPEN , kConnectionForceClose = CS_CONNECTION_FORCE_CLOSE }
	Connection strategy. More...

Public Member Functions
	VideoSource () noexcept=default
	VideoSource (const VideoSource &source)
	VideoSource (VideoSource &&other) noexcept
VideoSource &	operator= (VideoSource other) noexcept
	~VideoSource ()
	operator bool () const
int	GetHandle () const
bool	operator== (const VideoSource &other) const
Kind	GetKind () const
	Get the kind of the source.
std::string	GetName () const
	Get the name of the source.
std::string	GetDescription () const
	Get the source description.
uint64_t	GetLastFrameTime () const
	Get the last time a frame was captured.
void	SetConnectionStrategy (ConnectionStrategy strategy)
	Sets the connection strategy.
bool	IsConnected () const
	Is the source currently connected to whatever is providing the images?
bool	IsEnabled () const
	Gets source enable status.
VideoProperty	GetProperty (std::string_view name)
	Get a property.
std::vector< VideoProperty >	EnumerateProperties () const
	Enumerate all properties of this source.
VideoMode	GetVideoMode () const
	Get the current video mode.
bool	SetVideoMode (const VideoMode &mode)
	Set the video mode.
bool	SetVideoMode (wpi::util::PixelFormat pixelFormat, int width, int height, int fps)
	Set the video mode.
bool	SetPixelFormat (wpi::util::PixelFormat pixelFormat)
	Set the pixel format.
bool	SetResolution (int width, int height)
	Set the resolution.
bool	SetFPS (int fps)
	Set the frames per second (FPS).
bool	SetConfigJson (std::string_view config)
	Set video mode and properties from a JSON configuration string.
bool	SetConfigJson (const wpi::util::json &config)
	Set video mode and properties from a JSON configuration object.
std::string	GetConfigJson () const
	Get a JSON configuration string.
wpi::util::json	GetConfigJsonObject () const
	Get a JSON configuration object.
double	GetActualFPS () const
	Get the actual FPS.
double	GetActualDataRate () const
	Get the data rate (in bytes per second).
std::vector< VideoMode >	EnumerateVideoModes () const
	Enumerate all known video modes for this source.
CS_Status	GetLastStatus () const
std::vector< VideoSink >	EnumerateSinks ()
	Enumerate all sinks connected to this source.

Static Public Member Functions
static std::vector< VideoSource >	EnumerateSources ()
	Enumerate all existing sources.

Protected Member Functions
	VideoSource (CS_Source handle)

Protected Attributes
CS_Status	m_status = 0
CS_Source	m_handle {0}
	Video source handle.

Friends
class	VideoEvent
class	VideoSink
void	swap (VideoSource &first, VideoSource &second) noexcept

Detailed Description

A source for video that provides a sequence of frames.

Member Enumeration Documentation

◆ ConnectionStrategy

enum wpi::cs::VideoSource::ConnectionStrategy

Connection strategy.

Used for SetConnectionStrategy().

Enumerator

kConnectionAutoManage

Automatically connect or disconnect based on whether any sinks are connected to this source.

This is the default behavior.

kConnectionKeepOpen

Try to keep the connection open regardless of whether any sinks are connected.

kConnectionForceClose

Never open the connection.

If this is set when the connection is open, close the connection.

◆ Kind

enum wpi::cs::VideoSource::Kind

Video source kind.

Enumerator
kUnknown	Unknown video source.
kUsb	USB video source.
kHttp	HTTP video source.
kCv	CV video source.
kRaw	Raw video source.

Constructor & Destructor Documentation

◆ VideoSource() [1/4]

wpi::cs::VideoSource::VideoSource ( )

defaultnoexcept

◆ VideoSource() [2/4]

wpi::cs::VideoSource::VideoSource ( const VideoSource & source )

inline

◆ VideoSource() [3/4]

wpi::cs::VideoSource::VideoSource ( VideoSource && other )

inlinenoexcept

◆ ~VideoSource()

wpi::cs::VideoSource::~VideoSource ( )

inline

◆ VideoSource() [4/4]

wpi::cs::VideoSource::VideoSource ( CS_Source handle )

inlineexplicitprotected

Member Function Documentation

◆ EnumerateProperties()

std::vector< VideoProperty > wpi::cs::VideoSource::EnumerateProperties ( ) const

Enumerate all properties of this source.

◆ EnumerateSinks()

std::vector< VideoSink > wpi::cs::VideoSource::EnumerateSinks ( )

Enumerate all sinks connected to this source.

Returns: Vector of sinks.

◆ EnumerateSources()

std::vector< VideoSource > wpi::cs::VideoSource::EnumerateSources ( )

static

Enumerate all existing sources.

Returns: Vector of sources.

◆ EnumerateVideoModes()

std::vector< VideoMode > wpi::cs::VideoSource::EnumerateVideoModes ( ) const

inline

Enumerate all known video modes for this source.

◆ GetActualDataRate()

double wpi::cs::VideoSource::GetActualDataRate ( ) const

inline

Get the data rate (in bytes per second).

SetTelemetryPeriod() must be called for this to be valid.

Returns: Data rate averaged over the telemetry period.

◆ GetActualFPS()

double wpi::cs::VideoSource::GetActualFPS ( ) const

inline

Get the actual FPS.

SetTelemetryPeriod() must be called for this to be valid.

Returns: Actual FPS averaged over the telemetry period.

◆ GetConfigJson()

std::string wpi::cs::VideoSource::GetConfigJson ( ) const

inline

Get a JSON configuration string.

Returns: JSON configuration string

◆ GetConfigJsonObject()

wpi::util::json wpi::cs::VideoSource::GetConfigJsonObject ( ) const

Get a JSON configuration object.

Returns: JSON configuration object

◆ GetDescription()

std::string wpi::cs::VideoSource::GetDescription ( ) const

inline

Get the source description.

This is source-kind specific.

◆ GetHandle()

int wpi::cs::VideoSource::GetHandle ( ) const

inline

◆ GetKind()

Kind wpi::cs::VideoSource::GetKind ( ) const

inline

Get the kind of the source.

◆ GetLastFrameTime()

uint64_t wpi::cs::VideoSource::GetLastFrameTime ( ) const

inline

Get the last time a frame was captured.

This uses the same time base as wpi::util::Now().

Returns: Time in 1 us increments.

◆ GetLastStatus()

CS_Status wpi::cs::VideoSource::GetLastStatus ( ) const

inline

◆ GetName()

std::string wpi::cs::VideoSource::GetName ( ) const

inline

Get the name of the source.

The name is an arbitrary identifier provided when the source is created, and should be unique.

◆ GetProperty()

VideoProperty wpi::cs::VideoSource::GetProperty ( std::string_view name )

inline

Get a property.

Parameters

name	Property name

Returns: Property contents (of kind Property::kNone if no property with the given name exists)

◆ GetVideoMode()

VideoMode wpi::cs::VideoSource::GetVideoMode ( ) const

inline

Get the current video mode.

◆ IsConnected()

bool wpi::cs::VideoSource::IsConnected ( ) const

inline

Is the source currently connected to whatever is providing the images?

◆ IsEnabled()

bool wpi::cs::VideoSource::IsEnabled ( ) const

inline

Gets source enable status.

This is determined with a combination of connection strategy and the number of sinks connected.

Returns: True if enabled, false otherwise.

◆ operator bool()

wpi::cs::VideoSource::operator bool ( ) const

inlineexplicit

◆ operator=()

VideoSource & wpi::cs::VideoSource::operator= ( VideoSource other )

inlinenoexcept

◆ operator==()

bool wpi::cs::VideoSource::operator== ( const VideoSource & other ) const

inline

◆ SetConfigJson() [1/2]

bool wpi::cs::VideoSource::SetConfigJson ( const wpi::util::json & config )

inline

Set video mode and properties from a JSON configuration object.

Parameters

config configuration

Returns: True if set successfully

◆ SetConfigJson() [2/2]

bool wpi::cs::VideoSource::SetConfigJson ( std::string_view config )

inline

Set video mode and properties from a JSON configuration string.

The format of the JSON input is:

{
    "pixel format": "MJPEG", "YUYV", etc
    "width": video mode width
    "height": video mode height
    "fps": video mode fps
    "brightness": percentage brightness
    "white balance": "auto", "hold", or value
    "exposure": "auto", "hold", or value
    "properties": [
        {
            "name": property name
            "value": property value
        }
    ]
}

Parameters

config configuration

Returns: True if set successfully

◆ SetConnectionStrategy()

void wpi::cs::VideoSource::SetConnectionStrategy ( ConnectionStrategy strategy )

inline

Sets the connection strategy.

By default, the source will automatically connect or disconnect based on whether any sinks are connected.

This function is non-blocking; look for either a connection open or close event or call IsConnected() to determine the connection state.

Parameters

strategy connection strategy (auto, keep open, or force close)

◆ SetFPS()

bool wpi::cs::VideoSource::SetFPS ( int fps )

inline

Set the frames per second (FPS).

Parameters

fps	desired FPS

Returns: True if set successfully

◆ SetPixelFormat()

bool wpi::cs::VideoSource::SetPixelFormat ( wpi::util::PixelFormat pixelFormat )

inline

Set the pixel format.

Parameters

pixelFormat desired pixel format

Returns: True if set successfully

◆ SetResolution()

bool wpi::cs::VideoSource::SetResolution	(	int	width,
		int	height )

inline

Set the resolution.

Parameters

width	desired width
height	desired height

Returns: True if set successfully

◆ SetVideoMode() [1/2]

bool wpi::cs::VideoSource::SetVideoMode ( const VideoMode & mode )

inline

Set the video mode.

Parameters

mode	Video mode

◆ SetVideoMode() [2/2]

bool wpi::cs::VideoSource::SetVideoMode	(	wpi::util::PixelFormat	pixelFormat,
		int	width,
		int	height,
		int	fps )

inline

Set the video mode.

Parameters

pixelFormat	desired pixel format
width	desired width
height	desired height
fps	desired FPS

Returns: True if set successfully

◆ swap

void swap	(	VideoSource &	first,
		VideoSource &	second )

friend

◆ VideoEvent

friend class VideoEvent

friend

◆ VideoSink

friend class VideoSink

friend

Member Data Documentation

◆ m_handle

CS_Source wpi::cs::VideoSource::m_handle {0}

protected

Video source handle.

◆ m_status

CS_Status wpi::cs::VideoSource::m_status = 0

mutableprotected

The documentation for this class was generated from the following file:

wpi/cs/VideoSource.hpp

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Detailed Description

Member Enumeration Documentation

◆ ConnectionStrategy

◆ Kind

Constructor & Destructor Documentation

◆ VideoSource() [1/4]

◆ VideoSource() [2/4]

◆ VideoSource() [3/4]

◆ ~VideoSource()

◆ VideoSource() [4/4]

Member Function Documentation

◆ EnumerateProperties()

◆ EnumerateSinks()

◆ EnumerateSources()

◆ EnumerateVideoModes()

◆ GetActualDataRate()

◆ GetActualFPS()

◆ GetConfigJson()

◆ GetConfigJsonObject()

◆ GetDescription()

◆ GetHandle()

◆ GetKind()

◆ GetLastFrameTime()

◆ GetLastStatus()

◆ GetName()

◆ GetProperty()

◆ GetVideoMode()

◆ IsConnected()

◆ IsEnabled()

◆ operator bool()

◆ operator=()

◆ operator==()

◆ SetConfigJson() [1/2]

◆ SetConfigJson() [2/2]

◆ SetConnectionStrategy()

◆ SetFPS()

◆ SetPixelFormat()

◆ SetResolution()

◆ SetVideoMode() [1/2]

◆ SetVideoMode() [2/2]

Friends And Related Symbol Documentation

◆ swap

◆ VideoEvent

◆ VideoSink

Member Data Documentation

◆ m_handle

◆ m_status
