wpi::cmd::SelectCommand< Key > Class Template Reference

A command composition that runs one of a selection of commands using a selector and a key to command mapping. More...

#include <wpi/commands2/SelectCommand.hpp>

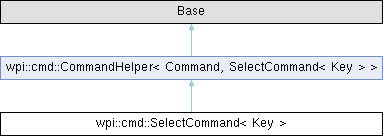

Inheritance diagram for wpi::cmd::SelectCommand< Key >:

Public Member Functions
template<std::derived_from< Command >... Commands>
	SelectCommand (std::function< Key()> selector, std::pair< Key, Commands >... commands)
	Creates a new SelectCommand.
	SelectCommand (std::function< Key()> selector, std::vector< std::pair< Key, std::unique_ptr< Command > > > &&commands)
	SelectCommand (const SelectCommand &other)=delete
	SelectCommand (SelectCommand &)=delete
	SelectCommand (SelectCommand &&other)=default
void	Initialize () override
void	Execute () override
void	End (bool interrupted) override
bool	IsFinished () override
bool	RunsWhenDisabled () const override
Command::InterruptionBehavior	GetInterruptionBehavior () const override
void	InitSendable (wpi::util::SendableBuilder &builder) override
Public Member Functions inherited from wpi::cmd::CommandHelper< Command, SelectCommand< Key > >
	CommandHelper ()=default
CommandPtr	ToPtr () &&override

Detailed Description

template<typename Key>
class wpi::cmd::SelectCommand< Key >

A command composition that runs one of a selection of commands using a selector and a key to command mapping.

The rules for command compositions apply: command instances that are passed to it are owned by the composition and cannot be added to any other composition or scheduled individually, and the composition requires all subsystems its components require.

This class is provided by the NewCommands VendorDep

Constructor & Destructor Documentation

SelectCommand() [1/5]

template<typename Key>

template<std::derived_from< Command >... Commands>

wpi::cmd::SelectCommand< Key >::SelectCommand ( std::function< Key()> selector, std::pair< Key, Commands >... commands )

inlineexplicit

Creates a new SelectCommand.

Parameters

commands	the map of commands to choose from
selector	the selector to determine which command to run

SelectCommand() [2/5]

template<typename Key>

wpi::cmd::SelectCommand< Key >::SelectCommand ( std::function< Key()> selector, std::vector< std::pair< Key, std::unique_ptr< Command > > > && commands )

inline

SelectCommand() [3/5]

template<typename Key>

wpi::cmd::SelectCommand< Key >::SelectCommand ( const SelectCommand< Key > & other )

delete

SelectCommand() [4/5]

template<typename Key>

wpi::cmd::SelectCommand< Key >::SelectCommand ( SelectCommand< Key > & )

delete

SelectCommand() [5/5]

template<typename Key>

wpi::cmd::SelectCommand< Key >::SelectCommand ( SelectCommand< Key > && other )

default

Member Function Documentation

End()

template<typename Key>

void wpi::cmd::SelectCommand< Key >::End ( bool interrupted )

inlineoverride

Execute()

template<typename Key>

void wpi::cmd::SelectCommand< Key >::Execute ( )

inlineoverride

GetInterruptionBehavior()

template<typename Key>

Command::InterruptionBehavior wpi::cmd::SelectCommand< Key >::GetInterruptionBehavior ( ) const

inlineoverride

Initialize()

template<typename T>

void wpi::cmd::SelectCommand< T >::Initialize ( )

override

InitSendable()

template<typename Key>

void wpi::cmd::SelectCommand< Key >::InitSendable ( wpi::util::SendableBuilder & builder )

inlineoverride

IsFinished()

template<typename Key>

bool wpi::cmd::SelectCommand< Key >::IsFinished ( )

inlineoverride

RunsWhenDisabled()

template<typename Key>

bool wpi::cmd::SelectCommand< Key >::RunsWhenDisabled ( ) const

inlineoverride

---

The documentation for this class was generated from the following file:

• wpi/commands2/SelectCommand.hpp
