wpi::cmd::ProxyCommand Class Reference

Schedules a given command when this command is initialized and ends when it ends, but does not directly run it. More...

#include <wpi/commands2/ProxyCommand.hpp>

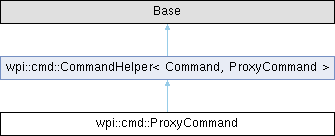

Inheritance diagram for wpi::cmd::ProxyCommand:

Public Member Functions
	ProxyCommand (Command *command)
	Creates a new ProxyCommand that schedules the given command when initialized, and ends when it is no longer scheduled.
	ProxyCommand (std::unique_ptr< Command > command)
	Creates a new ProxyCommand that schedules the given command when initialized, and ends when it is no longer scheduled.
	ProxyCommand (ProxyCommand &&other)=default
void	Initialize () override
void	End (bool interrupted) override
bool	IsFinished () override
void	InitSendable (wpi::util::SendableBuilder &builder) override
Public Member Functions inherited from wpi::cmd::CommandHelper< Command, ProxyCommand >
	CommandHelper ()=default
CommandPtr	ToPtr () &&override

Detailed Description

Schedules a given command when this command is initialized and ends when it ends, but does not directly run it.

Use this for including a command in a composition without adding its requirements, but only if you know what you are doing. If you are unsure, see the WPILib docs for a complete explanation of proxy semantics. Do not proxy a command from a subsystem already required by the composition, or else the composition will cancel itself when the proxy is reached. If this command is interrupted, it will cancel the command.

This class is provided by the Commands v2 VendorDep

Constructor & Destructor Documentation

ProxyCommand() [1/3]

wpi::cmd::ProxyCommand::ProxyCommand ( Command * command )

explicit

Creates a new ProxyCommand that schedules the given command when initialized, and ends when it is no longer scheduled.

Parameters

command

the command to run by proxy

ProxyCommand() [2/3]

wpi::cmd::ProxyCommand::ProxyCommand ( std::unique_ptr< Command > command )

explicit

Creates a new ProxyCommand that schedules the given command when initialized, and ends when it is no longer scheduled.

Note that this constructor passes ownership of the given command to the returned ProxyCommand.

Parameters

command

the command to schedule

ProxyCommand() [3/3]

wpi::cmd::ProxyCommand::ProxyCommand ( ProxyCommand && other )

default

Member Function Documentation

End()

void wpi::cmd::ProxyCommand::End ( bool interrupted )

override

Initialize()

void wpi::cmd::ProxyCommand::Initialize ( )

override

InitSendable()

void wpi::cmd::ProxyCommand::InitSendable ( wpi::util::SendableBuilder & builder )

override

IsFinished()

bool wpi::cmd::ProxyCommand::IsFinished ( )

override

---

The documentation for this class was generated from the following file:

• wpi/commands2/ProxyCommand.hpp
