wpi::cmd::ParallelCommandGroup Class Reference

A command composition that runs a set of commands in parallel, ending when the last command ends. More...

#include <wpi/commands2/ParallelCommandGroup.hpp>

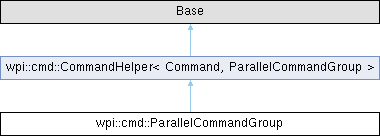

Inheritance diagram for wpi::cmd::ParallelCommandGroup:

Public Member Functions
	ParallelCommandGroup (std::vector< std::unique_ptr< Command > > &&commands)
	Creates a new ParallelCommandGroup.
template<wpi::util::DecayedDerivedFrom< Command >... Commands>
	ParallelCommandGroup (Commands &&... commands)
	Creates a new ParallelCommandGroup.
	ParallelCommandGroup (ParallelCommandGroup &&other)=default
	ParallelCommandGroup (const ParallelCommandGroup &)=delete
	ParallelCommandGroup (ParallelCommandGroup &)=delete
template<wpi::util::DecayedDerivedFrom< Command >... Commands>
void	AddCommands (Commands &&... commands)
	Adds the given commands to the group.
void	Initialize () final
void	Execute () final
void	End (bool interrupted) final
bool	IsFinished () final
bool	RunsWhenDisabled () const override
Command::InterruptionBehavior	GetInterruptionBehavior () const override
Public Member Functions inherited from wpi::cmd::CommandHelper< Command, ParallelCommandGroup >
	CommandHelper ()=default
CommandPtr	ToPtr () &&override

Detailed Description

A command composition that runs a set of commands in parallel, ending when the last command ends.

The rules for command compositions apply: command instances that are passed to it are owned by the composition and cannot be added to any other composition or scheduled individually, and the composition requires all subsystems its components require.

This class is provided by the NewCommands VendorDep

Constructor & Destructor Documentation

ParallelCommandGroup() [1/5]

wpi::cmd::ParallelCommandGroup::ParallelCommandGroup ( std::vector< std::unique_ptr< Command > > && commands )

explicit

Creates a new ParallelCommandGroup.

The given commands will be executed simultaneously. The command group will finish when the last command finishes. If the composition is interrupted, only the commands that are still running will be interrupted.

Parameters

commands

the commands to include in this composition.

ParallelCommandGroup() [2/5]

template<wpi::util::DecayedDerivedFrom< Command >... Commands>

wpi::cmd::ParallelCommandGroup::ParallelCommandGroup ( Commands &&... commands )

inlineexplicit

Creates a new ParallelCommandGroup.

The given commands will be executed simultaneously. The command group will finish when the last command finishes. If the composition is interrupted, only the commands that are still running will be interrupted.

Parameters

commands

the commands to include in this composition.

ParallelCommandGroup() [3/5]

wpi::cmd::ParallelCommandGroup::ParallelCommandGroup ( ParallelCommandGroup && other )

default

ParallelCommandGroup() [4/5]

wpi::cmd::ParallelCommandGroup::ParallelCommandGroup ( const ParallelCommandGroup & )

delete

ParallelCommandGroup() [5/5]

wpi::cmd::ParallelCommandGroup::ParallelCommandGroup ( ParallelCommandGroup & )

delete

Member Function Documentation

AddCommands()

template<wpi::util::DecayedDerivedFrom< Command >... Commands>

void wpi::cmd::ParallelCommandGroup::AddCommands ( Commands &&... commands )

inline

Adds the given commands to the group.

Parameters

commands

Commands to add to the group.

End()

void wpi::cmd::ParallelCommandGroup::End ( bool interrupted )

final

Execute()

void wpi::cmd::ParallelCommandGroup::Execute ( )

final

GetInterruptionBehavior()

Command::InterruptionBehavior wpi::cmd::ParallelCommandGroup::GetInterruptionBehavior ( ) const

override

Initialize()

void wpi::cmd::ParallelCommandGroup::Initialize ( )

final

IsFinished()

bool wpi::cmd::ParallelCommandGroup::IsFinished ( )

final

RunsWhenDisabled()

bool wpi::cmd::ParallelCommandGroup::RunsWhenDisabled ( ) const

override

---

The documentation for this class was generated from the following file:

• wpi/commands2/ParallelCommandGroup.hpp
