wpi::cmd::FunctionalCommand Class Reference

A command that allows the user to pass in functions for each of the basic command methods through the constructor. More...

#include <wpi/commands2/FunctionalCommand.hpp>

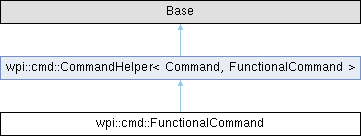

Inheritance diagram for wpi::cmd::FunctionalCommand:

Public Member Functions
	FunctionalCommand (std::function< void()> onInit, std::function< void()> onExecute, std::function< void(bool)> onEnd, std::function< bool()> isFinished, Requirements requirements={})
	Creates a new FunctionalCommand.
	FunctionalCommand (FunctionalCommand &&other)=default
	FunctionalCommand (const FunctionalCommand &other)=default
void	Initialize () override
void	Execute () override
void	End (bool interrupted) override
bool	IsFinished () override
Public Member Functions inherited from wpi::cmd::CommandHelper< Command, FunctionalCommand >
	CommandHelper ()=default
CommandPtr	ToPtr () &&override

Detailed Description

A command that allows the user to pass in functions for each of the basic command methods through the constructor.

Useful for inline definitions of complex commands - note, however, that if a command is beyond a certain complexity it is usually better practice to write a proper class for it than to inline it.

This class is provided by the NewCommands VendorDep

Constructor & Destructor Documentation

FunctionalCommand() [1/3]

wpi::cmd::FunctionalCommand::FunctionalCommand	(	std::function< void()>	onInit,
		std::function< void()>	onExecute,
		std::function< void(bool)>	onEnd,
		std::function< bool()>	isFinished,
		Requirements	requirements = {} )

Creates a new FunctionalCommand.

Parameters

onInit	the function to run on command initialization
onExecute	the function to run on command execution
onEnd	the function to run on command end
isFinished	the function that determines whether the command has finished
requirements	the subsystems required by this command

FunctionalCommand() [2/3]

wpi::cmd::FunctionalCommand::FunctionalCommand ( FunctionalCommand && other )

default

FunctionalCommand() [3/3]

wpi::cmd::FunctionalCommand::FunctionalCommand ( const FunctionalCommand & other )

default

Member Function Documentation

End()

void wpi::cmd::FunctionalCommand::End ( bool interrupted )

override

Execute()

void wpi::cmd::FunctionalCommand::Execute ( )

override

Initialize()

void wpi::cmd::FunctionalCommand::Initialize ( )

override

IsFinished()

bool wpi::cmd::FunctionalCommand::IsFinished ( )

override

---

The documentation for this class was generated from the following file:

• wpi/commands2/FunctionalCommand.hpp
