wpi::SendableChooser< T > Class Template Reference

The SendableChooser class is a useful tool for presenting a selection of options to the SmartDashboard. More...

#include <wpi/smartdashboard/SendableChooser.hpp>

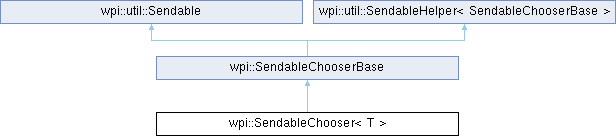

Inheritance diagram for wpi::SendableChooser< T >:

Public Types
using	CopyType = decltype(_unwrap_smart_ptr(m_choices.find("")->second))

Public Member Functions
	SendableChooser ()=default
	~SendableChooser () override=default
	SendableChooser (SendableChooser &&rhs)=default
SendableChooser &	operator= (SendableChooser &&rhs)=default
void	AddOption (std::string_view name, T object)
	Adds the given object to the list of options.
void	SetDefaultOption (std::string_view name, T object)
	Add the given object to the list of options and marks it as the default.
CopyType	GetSelected () const
	Returns a copy of the selected option (a std::weak_ptr<U> if T = std::shared_ptr<U>).
void	OnChange (std::function< void(T)> listener)
	Bind a listener that's called when the selected value changes.
void	InitSendable (wpi::util::SendableBuilder &builder) override
	Initializes this Sendable object.
Public Member Functions inherited from wpi::SendableChooserBase
	SendableChooserBase ()
	~SendableChooserBase () override=default
	SendableChooserBase (SendableChooserBase &&oth)
SendableChooserBase &	operator= (SendableChooserBase &&oth)
Public Member Functions inherited from wpi::util::Sendable
virtual constexpr	~Sendable ()=default
Public Member Functions inherited from wpi::util::SendableHelper< SendableChooserBase >
constexpr	SendableHelper (const SendableHelper &rhs)=default
constexpr SendableHelper &	operator= (const SendableHelper &rhs)=default

Additional Inherited Members
Protected Member Functions inherited from wpi::util::SendableHelper< SendableChooserBase >
constexpr	~SendableHelper ()
Protected Attributes inherited from wpi::SendableChooserBase
std::string	m_defaultChoice
std::string	m_selected
bool	m_haveSelected = false
wpi::util::mutex	m_mutex
int	m_instance
std::string	m_previousVal
Static Protected Attributes inherited from wpi::SendableChooserBase
static constexpr const char *	kDefault = "default"
static constexpr const char *	kOptions = "options"
static constexpr const char *	kSelected = "selected"
static constexpr const char *	kActive = "active"
static constexpr const char *	kInstance = ".instance"
static std::atomic_int	s_instances

Detailed Description

template<class T>
requires std::copy_constructible<T> && std::default_initializable<T>
class wpi::SendableChooser< T >

The SendableChooser class is a useful tool for presenting a selection of options to the SmartDashboard.

For instance, you may wish to be able to select between multiple autonomous modes. You can do this by putting every possible Command you want to run as an autonomous into a SendableChooser and then put it into the SmartDashboard to have a list of options appear on the laptop. Once autonomous starts, simply ask the SendableChooser what the selected value is.

Template Parameters

T	The type of values to be stored

See also

SmartDashboard

Member Typedef Documentation

CopyType

template<class T>

using wpi::SendableChooser< T >::CopyType = decltype(_unwrap_smart_ptr(m_choices.find("")->second))

Constructor & Destructor Documentation

SendableChooser() [1/2]

template<class T>

wpi::SendableChooser< T >::SendableChooser ( )

default

~SendableChooser()

template<class T>

wpi::SendableChooser< T >::~SendableChooser ( )

overridedefault

SendableChooser() [2/2]

template<class T>

wpi::SendableChooser< T >::SendableChooser ( SendableChooser< T > && rhs )

default

Member Function Documentation

AddOption()

template<class T>

void wpi::SendableChooser< T >::AddOption ( std::string_view name, T object )

inline

Adds the given object to the list of options.

On the SmartDashboard on the desktop, the object will appear as the given name.

Parameters

name	the name of the option
object	the option

GetSelected()

template<class T>

CopyType wpi::SendableChooser< T >::GetSelected ( ) const

inline

Returns a copy of the selected option (a std::weak_ptr<U> if T = std::shared_ptr<U>).

If there is none selected, it will return the default. If there is none selected and no default, then it will return a value-initialized instance. For integer types, this is 0. For container types like std::string, this is an empty string.

Returns

The option selected

InitSendable()

template<class T>

void wpi::SendableChooser< T >::InitSendable ( wpi::util::SendableBuilder & builder )

inlineoverridevirtual

Initializes this Sendable object.

Parameters

builder

sendable builder

Implements wpi::util::Sendable.

OnChange()

template<class T>

void wpi::SendableChooser< T >::OnChange ( std::function< void(T)> listener )

inline

Bind a listener that's called when the selected value changes.

Only one listener can be bound. Calling this function will replace the previous listener.

Parameters

listener

The function to call that accepts the new value

operator=()

template<class T>

SendableChooser & wpi::SendableChooser< T >::operator= ( SendableChooser< T > && rhs )

default

SetDefaultOption()

template<class T>

void wpi::SendableChooser< T >::SetDefaultOption ( std::string_view name, T object )

inline

Add the given object to the list of options and marks it as the default.

Functionally, this is very close to AddOption() except that it will use this as the default option if none other is explicitly selected.

Parameters

name	the name of the option
object	the option

---

The documentation for this class was generated from the following file:

• wpi/smartdashboard/SendableChooser.hpp
