wpi::MotorController Class Reference

Interface for motor controlling devices. More...

#include <wpi/hardware/motor/MotorController.hpp>

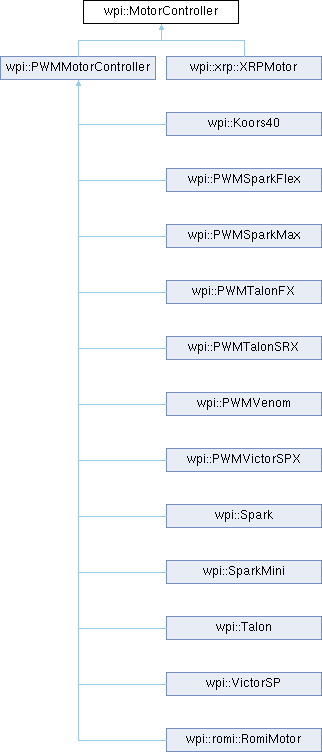

Inheritance diagram for wpi::MotorController:

Public Member Functions
virtual	~MotorController ()=default
virtual void	SetThrottle (double throttle)=0
	Sets the throttle of the motor controller.
virtual void	SetVoltage (wpi::units::volt_t voltage)
	Sets the voltage output of the motor controller.
virtual double	GetThrottle () const =0
	Gets the throttle of the motor controller.
virtual void	SetInverted (bool isInverted)=0
	Sets the inversion state of the motor controller.
virtual bool	GetInverted () const =0
	Gets the inversion state of the motor controller.
virtual void	Disable ()=0
	Disables the motor controller.

Detailed Description

Interface for motor controlling devices.

Constructor & Destructor Documentation

~MotorController()

virtual wpi::MotorController::~MotorController ( )

virtualdefault

Member Function Documentation

Disable()

virtual void wpi::MotorController::Disable ( )

pure virtual

Disables the motor controller.

Implemented in wpi::PWMMotorController, and wpi::xrp::XRPMotor.

GetInverted()

virtual bool wpi::MotorController::GetInverted ( ) const

pure virtual

Gets the inversion state of the motor controller.

Returns

The inversion state.

Implemented in wpi::PWMMotorController, and wpi::xrp::XRPMotor.

GetThrottle()

virtual double wpi::MotorController::GetThrottle ( ) const

pure virtual

Gets the throttle of the motor controller.

Returns

The throttle where -1 represents full reverse and 1 represents full forward.

Implemented in wpi::PWMMotorController, and wpi::xrp::XRPMotor.

SetInverted()

virtual void wpi::MotorController::SetInverted ( bool isInverted )

pure virtual

Sets the inversion state of the motor controller.

Parameters

isInverted

The inversion state.

Implemented in wpi::PWMMotorController, and wpi::xrp::XRPMotor.

SetThrottle()

virtual void wpi::MotorController::SetThrottle ( double throttle )

pure virtual

Sets the throttle of the motor controller.

Parameters

throttle

The throttle where -1 indicates full reverse and 1 indicates full forward.

Implemented in wpi::PWMMotorController, and wpi::xrp::XRPMotor.

SetVoltage()

virtual void wpi::MotorController::SetVoltage ( wpi::units::volt_t voltage )

virtual

Sets the voltage output of the motor controller.

Compensates for the current bus voltage to ensure that the desired voltage is output even if the battery voltage is below 12V - highly useful when the voltage outputs are "meaningful" (e.g. they come from a feedforward calculation).

NOTE: This function must be called regularly in order for voltage compensation to work properly - unlike the ordinary set function, it is not "set it and forget it."

Parameters

voltage

The voltage.

---

The documentation for this class was generated from the following file:

• wpi/hardware/motor/MotorController.hpp
