wpi::ADXL345_I2C Class Reference

ADXL345 Accelerometer on I2C. More...

#include <wpi/hardware/accelerometer/ADXL345_I2C.hpp>

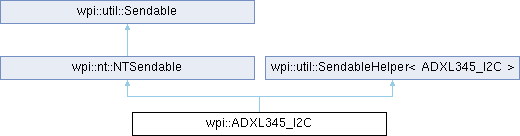

Inheritance diagram for wpi::ADXL345_I2C:

Classes
struct	AllAxes
	Container type for accelerations from all axes. More...

Public Types
enum class	Axis { X = 0x00 , Y = 0x02 , Z = 0x04 }
	Accelerometer axes. More...

Public Member Functions
	ADXL345_I2C (I2C::Port port, int range=2, int deviceAddress=DEFAULT_ADDRESS)
	Constructs the ADXL345 Accelerometer over I2C.
	~ADXL345_I2C () override=default
	ADXL345_I2C (ADXL345_I2C &&)=default
ADXL345_I2C &	operator= (ADXL345_I2C &&)=default
I2C::Port	GetI2CPort () const
int	GetI2CDeviceAddress () const
void	SetRange (int range)
	Set the measuring range of the accelerometer.
double	GetX ()
	Returns the acceleration along the X axis in g-forces.
double	GetY ()
	Returns the acceleration along the Y axis in g-forces.
double	GetZ ()
	Returns the acceleration along the Z axis in g-forces.
virtual double	GetAcceleration (Axis axis)
	Get the acceleration of one axis in Gs.
virtual AllAxes	GetAccelerations ()
	Get the acceleration of all axes in Gs.
void	InitSendable (wpi::nt::NTSendableBuilder &builder) override
	Initializes this Sendable object.
Public Member Functions inherited from wpi::nt::NTSendable
void	InitSendable (wpi::util::SendableBuilder &builder) override
	Initializes this Sendable object.
Public Member Functions inherited from wpi::util::Sendable
virtual constexpr	~Sendable ()=default
Public Member Functions inherited from wpi::util::SendableHelper< ADXL345_I2C >
constexpr	SendableHelper (const SendableHelper &rhs)=default
constexpr SendableHelper &	operator= (const SendableHelper &rhs)=default

Static Public Attributes
static constexpr int	DEFAULT_ADDRESS = 0x1D
	Default I2C device address.

Additional Inherited Members
Protected Member Functions inherited from wpi::util::SendableHelper< ADXL345_I2C >
constexpr	~SendableHelper ()

Detailed Description

ADXL345 Accelerometer on I2C.

This class allows access to a Analog Devices ADXL345 3-axis accelerometer on an I2C bus. This class assumes the default (not alternate) sensor address of 0x1D (7-bit address).

Member Enumeration Documentation

Axis

enum class wpi::ADXL345_I2C::Axis

strong

Accelerometer axes.

Enumerator
X	X axis.
Y	Y axis.
Z	Z axis.

Constructor & Destructor Documentation

ADXL345_I2C() [1/2]

wpi::ADXL345_I2C::ADXL345_I2C ( I2C::Port port, int range = 2, int deviceAddress = DEFAULT_ADDRESS )

explicit

Constructs the ADXL345 Accelerometer over I2C.

Parameters

port	The I2C port the accelerometer is attached to
range	The range (+ or -) that the accelerometer will measure; valid values are 2, 4, 8, or 16 Gs. The default is 2 Gs.
deviceAddress	The I2C address of the accelerometer (0x1D or 0x53)

~ADXL345_I2C()

wpi::ADXL345_I2C::~ADXL345_I2C ( )

overridedefault

ADXL345_I2C() [2/2]

wpi::ADXL345_I2C::ADXL345_I2C ( ADXL345_I2C && )

default

Member Function Documentation

GetAcceleration()

virtual double wpi::ADXL345_I2C::GetAcceleration ( Axis axis )

virtual

Get the acceleration of one axis in Gs.

Parameters

axis	The axis to read from.

Returns

Acceleration of the ADXL345 in Gs.

GetAccelerations()

virtual AllAxes wpi::ADXL345_I2C::GetAccelerations ( )

virtual

Get the acceleration of all axes in Gs.

Returns

An object containing the acceleration measured on each axis of the ADXL345 in Gs.

GetI2CDeviceAddress()

int wpi::ADXL345_I2C::GetI2CDeviceAddress

(

)

const

GetI2CPort()

I2C::Port wpi::ADXL345_I2C::GetI2CPort

(

)

const

GetX()

double wpi::ADXL345_I2C::GetX

(

)

Returns the acceleration along the X axis in g-forces.

Returns

The acceleration along the X axis in g-forces.

GetY()

double wpi::ADXL345_I2C::GetY

(

)

Returns the acceleration along the Y axis in g-forces.

Returns

The acceleration along the Y axis in g-forces.

GetZ()

double wpi::ADXL345_I2C::GetZ

(

)

Returns the acceleration along the Z axis in g-forces.

Returns

The acceleration along the Z axis in g-forces.

InitSendable()

void wpi::ADXL345_I2C::InitSendable ( wpi::nt::NTSendableBuilder & builder )

overridevirtual

Initializes this Sendable object.

Parameters

builder

sendable builder

Implements wpi::nt::NTSendable.

operator=()

ADXL345_I2C & wpi::ADXL345_I2C::operator= ( ADXL345_I2C && )

default

SetRange()

void wpi::ADXL345_I2C::SetRange

(

int

range

)

Set the measuring range of the accelerometer.

Parameters

range

The maximum acceleration, positive or negative, that the accelerometer will measure. Valid values are 2, 4, 8, or 16 Gs.

Member Data Documentation

DEFAULT_ADDRESS

int wpi::ADXL345_I2C::DEFAULT_ADDRESS = 0x1D

staticconstexpr

Default I2C device address.

---

The documentation for this class was generated from the following file:

• wpi/hardware/accelerometer/ADXL345_I2C.hpp
